Steinway & Sons

Model S Soundbar



Redefining soundbar performance

The Steinway & Sons Model S Soundbar redefines soundbar performance, delivering extraordinary clarity, outstanding musicality, and exceptionally powerful bass. The RoomPerfect™ technology calibrates the soundbar for any room and any placement, always achieving the best possible sound performance when mounted as an on-wall speaker or placed on furniture.

Exceptional loudspeaker technology and 1.600 watt power

Three renowned Air Motion Transformer tweeters, three dedicated midrange drivers, and two powerful woofers, combined with amplification power of 1.600 watt, turn every movie and musical selection into an extraordinary experience, far beyond what a common soundbar or any built-in TV speaker can deliver. Based on the renowned Model S speaker technology built into an extra-wide design, the Model S Soundbar can even serve as a powerful high-end audio loudspeaker for music, providing excellent stereo imaging and soundstaging.

Outstanding build quality and finishes

Made from machined solid aluminum front and back panels, a low-resonance MDF frame with five acoustically separated chambers inside, and lacquered in matte black or immaculate high gloss black with gold details and signature strings, the Model S Soundbar is as beautiful as it is timeless. Custom finishes are available on request. Every soundbar is assembled and finished by hand in Skive, Denmark.

Integrated system approach for the ideal amplifier match

Steinway Lyngdorf’s integrated system approach ensures the ideal amplifier match and the best system performance. The Model S Soundbar is powered by four amplification channels from the Steinway & Sons A1 or A2 digital power amplifier, while the Steinway & Sons stereo or surround processor with RoomPerfect™ adapts it to the room acoustics and ensures the best possible sound performance anywhere.

Model S Soundbar in white living room
Showing all parts of the Steinway & Sons Model S Soundbar

Unique features

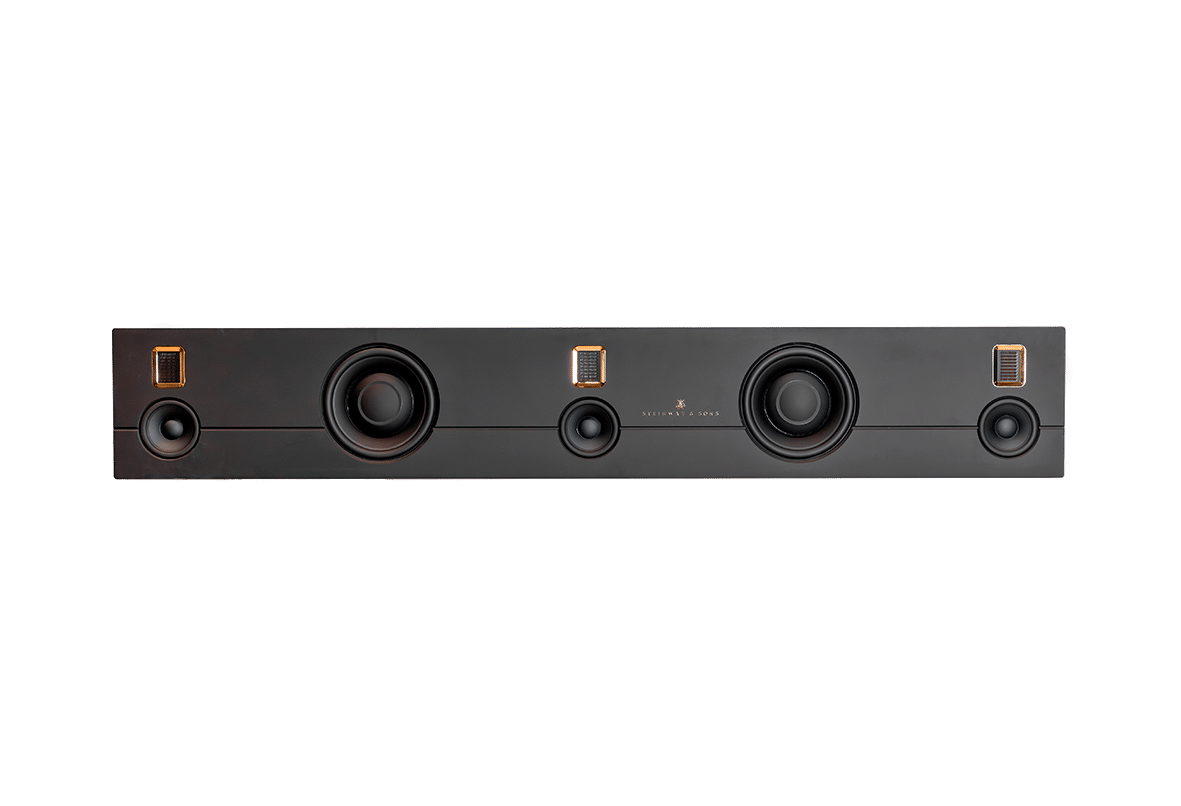

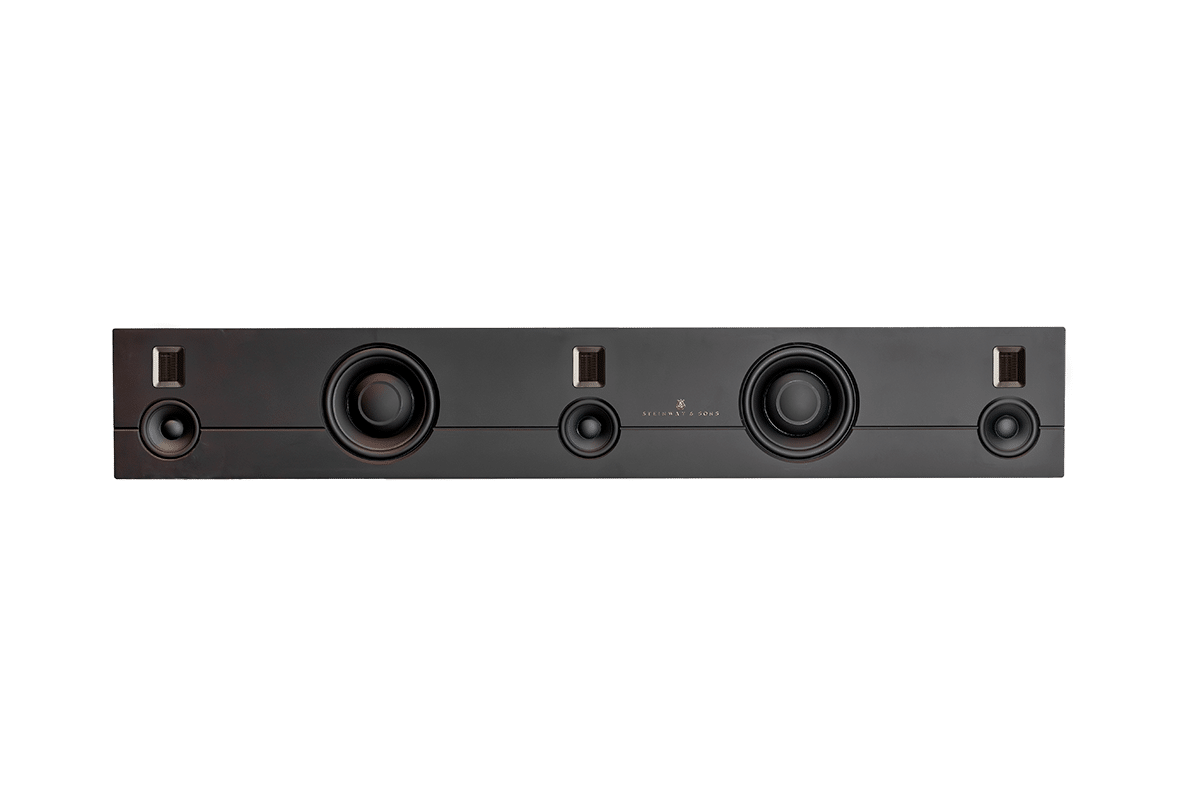

Close up of Steinway & Sons Model S Soundbar
Outstanding build quality

The soundbar is made from machined solid aluminum panels for the front and back side, which are mounted to a low-resonance MDF frame with five acoustically separated chambers inside. This provides the best foundation for the high-quality speaker drivers, and ensures the purest sound from the highest to the lowest notes – even when playing louder.

Exceptionally powerful bass

The Model S Soundbar differs from any other soundbar by reproducing real bass, as powerful and punchy as the musician or creator of a movie soundtrack intended. Despite the unusually shallow construction, the two 10’’ woofers are a long-throw design, with a four-layer voice coil, ultra-rigid anodized aluminum cone, and a very powerful neodymium magnet. The renowned AMT tweeters and midrange drivers complete the performance with extraordinary clarity and details.

Close up of bass unit on Steinway & Sons Model S Soundbar
Close up of Steinway & Sons Model S Soundbar
Signature Steinway & Sons design

Every Model S Soundbar is assembled and finished by hand in Denmark. This soundbar is a statement in quality and design: The aluminum front is anodized in matte black or lacquered in high gloss black, the tweeter frame in matte black or gold, and the sides bronze-gold colored with black strings resembling musical instruments. Custom colors and finishes are available on request.

Technical drawing of Model S Soundbar

Specifications

Description: Full-range on-wall loudspeaker
Tweeter: 3 x Air Motion Transformer, Kapton foil, neodymium magnet
Midrange: 3 x 5,25”, anodized aluminum cone, neodymium magnet
Woofer: 2 x 10” aluminum cone, 4-layer voice coil, neodymium magnet
Enclosure: Aluminum front and back, MDF frame
Frequency range: 40 Hz – 20 kHz (-3 dB)
Amplification: A1 or A2 amplifiers, 4 x 400 watt
Amplification needed: 4 (left channel, right channel, center channel, dual woofers)
Max SPL@1m: 113 dB
Crossover: Woofer/midrange: Digital, stored in processor (200 Hz, 4th order), midrange/tweeter: (2500 Hz, 4th order)
Connections: 2 x Neutrik speakON NL4
Placement: On-wall, placed on furniture
Dimensions (W x H x D): 1890 x 300 x 104 mm / 74.4 x 11.8 x 4.1 inches (incl. base plinth)
Weight: 48 kg / 106 lb
Finish: Matte black, high-gloss black with gold accents, custom finishes available

Downloads:
Fact sheet
Technical drawings
Pictures

Listings:

Steinway Surface
D-Tools logo

Integrated system approach

All Steinway & Sons products can be combined for individual Steinway & Sons sound systems and follow our integrated system approach. The chosen loudspeakers are programmed into the processor, and amplifiers are connected reliably using our own digital signal connection. RoomPerfect™ will further acoustically calibrate the loudspeakers to the room. With this integrated system approach, we can guarantee the legacy of absolute perfection that comes with the Steinway & Sons partnership. A perfection which can never be attained mixing products “off the shelf” from different manufacturers.

This loudspeaker can be combined with the following models, depending on the room and customer wishes.
