Steinway & Sons

Model LS

The Model LS series is the number one choice for larger rooms and spaces with rows of elevated seats. The collection offers commanding floor-standing and modular in-wall speakers, and simply outperforms any other similar system on the market. The Model LS series features an innovative line source approach incorporating floor-to-ceiling speakers and boundary woofers. This design allows sound to propagate undistorted over long distances, ensuring that every seat in the room has the same volume level and tonal consistency.

Floor-standing speakers

The Model LS Concert, and its smaller brother the Model LS Studio, blend the dipole design from the flagship Model D with the line source approach from the in-wall Model LS speakers.  At over 8 and 6.5 feet tall, these open baffle speakers are for very large rooms where a sound system must sound – and look – impressive.

Find dealer
See more pictures here
Technical drawings of Model LS L/S and center

Specifications (L/R)

Description: In-wall stackable speaker
Frequency response: 80 – 22k Hz
Max SPL @ 1m: 130 dB*
Amplification needed: 2 channels
Dimensions (H x W x D): 49.2 x 35.0 x 15.0 cm / 19.4 x 13.8 x 5.9 in
Weight: 18 kg / 39.7 lbs
Comments: Minimum 4 modules
Finish: Matte black
* Equivalent to a conventional point source SPL @ 1m

Specifications (center)

Description: In-wall stackable speaker
Frequency response: 80 – 22k Hz
Max SPL @ 1m: 130 dB*
Amplification needed: 2 channels
Dimensions (H x W x D): 49.2 x 35.0 x 15.0 cm / 19.4 x 13.8 x 5.9 in
Weight: 18 kg / 39.7 lbs
Comments: Minimum 4 modules
Finish: Matte black
* Equivalent to a conventional point source SPL @ 1m

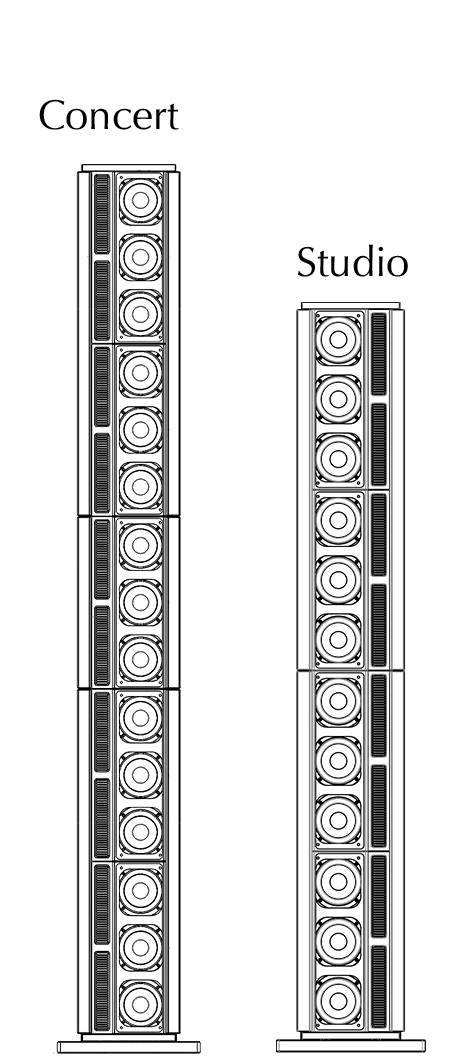

Model LS l/r technical drawing

Specifications (concert)

Description: Floor-standing dipole line source speaker
Frequency response: 120 – 22k Hz
Max SPL @ 1m: 132 dB*
Amplification needed: 2 channels
Dimensions (H x W x D): 249.1 x 40.0 x 46.0 cm / 98.1 x 15.7 x 18.1 in
Weight: 73.0 kg / 161.0 lbs
Finish: High-gloss black with matte gold or black accents
* Equivalent to a conventional point source SPL @ 1m

Specifications (studio)

Description: Floor-standing dipole line source speaker
Frequency response: 120 – 22k Hz
Max SPL @ 1m: 131 dB*
Amplification needed: 2 channels
Dimensions (H x W x D): 200.7 x 40.0 x 46.0 cm / 79.0 x 15.7 x 18.1 in
Weight: 58.4 kg / 128.8 lbs
Finish: High-gloss black with matte gold or black accents
* Equivalent to a conventional point source SPL @ 1m

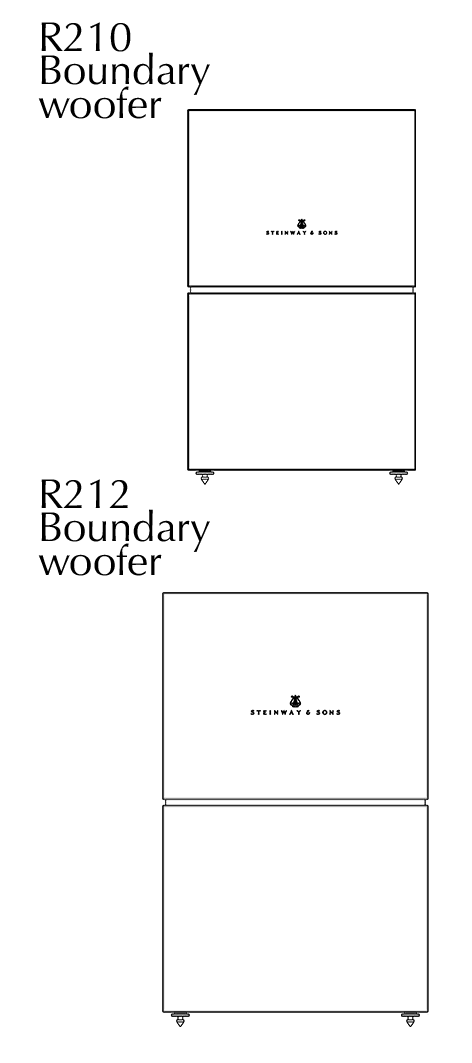

Model LSl- r210 and -r212 technical drawing

Specifications (R210 bw)

Description: In-room stackable boundary woofer
Frequency response: 20 – 500 Hz
Max SPL @ 1m: 114 dB (117 dB Corner)
Amplification needed: 1 channel
Dimensions (H x W x D): 61.5 x 38.9 x 23.3 cm / 24.2 x 15.3 x 9.2 in
Weight: 30.4 kg / 67.3 lbs
Finish: Matte black, high-gloss black, high-gloss white.

Specifications (R212 bw)

Description: In-room stackable boundary woofer
Frequency response: 20 – 500 Hz
Max SPL @ 1m: 117 dB (120 dB Corner)
Amplification needed: 1 channel
Dimensions (H x W x D): 71.0 x 45.0 x 27.0 cm / 28.0 x 17.7 x 10.6 in
Weight: 35.4 kg / 78.3 lbs
Finish: Matte black, high-gloss black, high-gloss white.

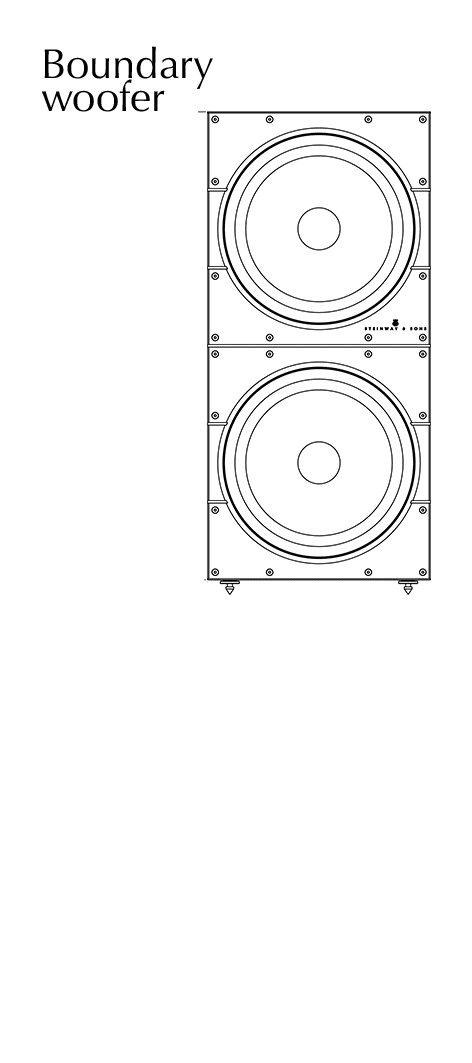

Technical drawings of Model LS bw

Specifications (bw)

Description: In-wall stackable boundary woofer
Frequency response: 20 – 500 Hz
Max SPL @ 1m: 117 dB (120 dB Corner)
Amplification needed: 1 channel
Dimensions (H x W x D): 73.8 x 35.0 x 33.0 cm / 29.1 x 13.8 x 13 in
Weight: 33.5 kg / 73.9 Ibs
Finish: Matte black

Download technical drawings
