Steinway & Sons

In-wall series

The In-Wall series speakers are specifically designed to be placed behind acoustically transparent screens, fabric panels, and metal mesh grills. With invisible presence, the In-Wall series offers exceptional performance, versatility, and unbeatable appeal.

Invisible high performance

This series can be mixed-and-matched with any other item in our product range while maintaining the outstanding performance of each individual component.

Find dealer
Model IW-26 and -16 technical drawing

Specifications (Model IC-26 speaker)

Description: In-ceiling speaker
Frequency response:70 – 20k Hz
Max SPL @ 1m: 116 dB
Amplification needed: 1 channel
Dimensions (H x W x D): 22.0 x 35.0 x 22.5 cm / 8.7 x 13.8 x 8.9 in
Weight: 11 kg / 24.2 lbs
Finish: Matte black

Specifications (Model IC-16 speaker)

Description: In-ceiling speaker
Frequency response: 80 – 22k Hz
Max SPL @ 1m: 114 dB
Amplification needed: 1 channel
Dimensions (H x W x D): 57.0 x 31.0 x 10.0 cm / 22.4 x 12.2 x 3.9 in
Weight: 8.9 kg / 19.6 lbs
Finish: Matte black

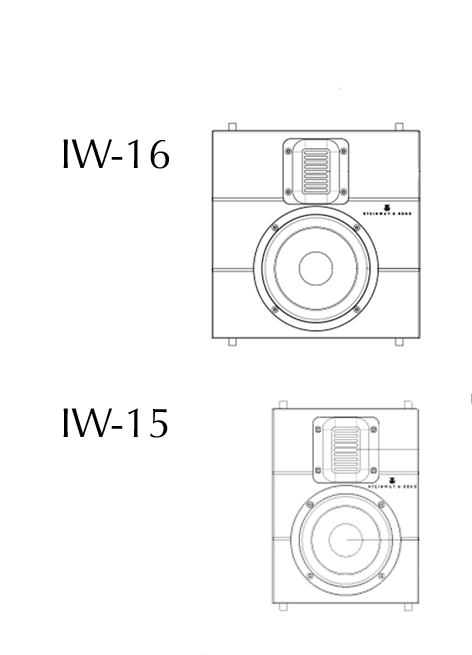

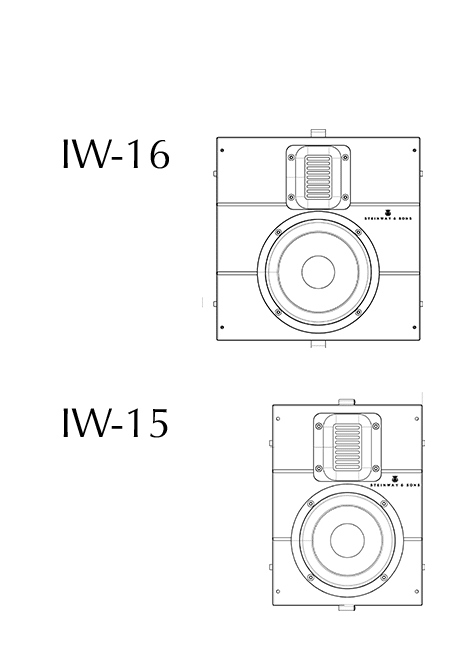

Model IW-15 and IW-16

Specifications (Model IW-16 speaker)

Description: In-wall, in-ceiling speaker
Frequency response: 80 – 22k Hz
Max SPL @ 1m: 114 dB
Amplification needed: 1 channel
Dimensions (H x W x D): 28.6 x 28.6 x 9.5 cm / 11.2 x 11.2 x 3.7 in
Weight: 5.7 kg / 12.6 lbs
Finish: Matte black

Specifications (Model IW-15 speaker)

Description: In-wall, in-ceiling speaker
Frequency response: 100 – 22k Hz
Max SPL @ 1m: 114 dB
Amplification needed: 1 channel
Dimensions (H x W x D): 26.6 x 20.0 x 9.5 cm / 10.5 x 7.8 x 3.7 in
Weight: 3.5 kg / 7.7 lbs
Finish: Matte black

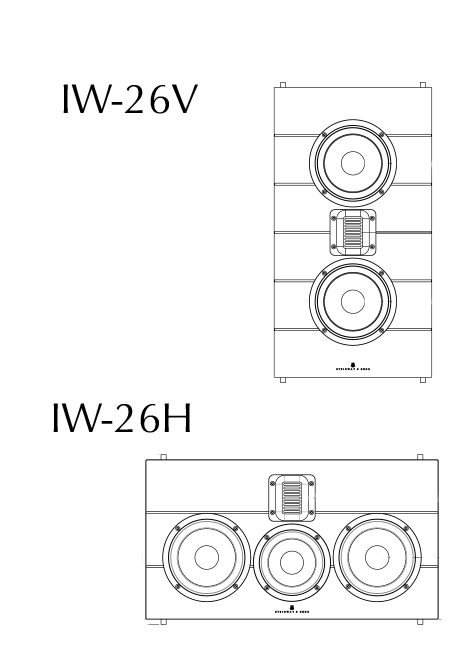

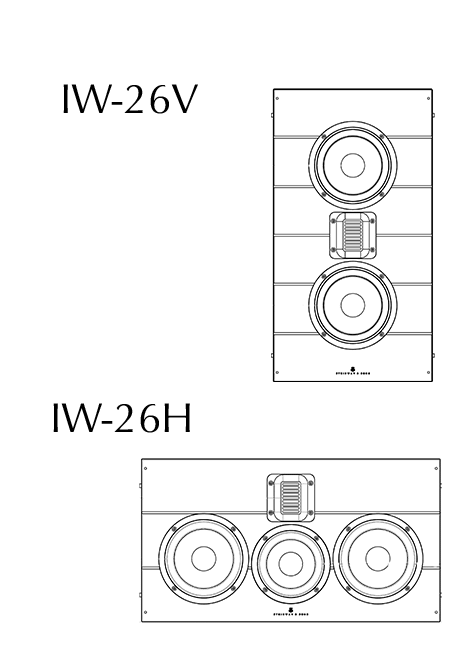

Model IW-26V and IW26H

Specifications (Model IW-26H speaker)

Description: In-wall speaker
Frequency response: 80 – 22 Hz
Max SPL @ 1m: 117 dB
Amplification needed: 2 channels
Dimensions (H x W x D): 31.0 x 57.0 x 9.5 cm / 12.2 x 22.4 x 3.7 in
Weight: 12.2 kg / 26.9 Ibs
Finish: Matte black

Specifications (Model IW-26V speaker)

Description: In-wall, in-ceiling speaker
Frequency response: 80 – 22 Hz
Max SPL @ 1m: 116 dB
Amplification needed: 1 channel
Dimensions (H x W x D): 57.0 x 31.0 x 9.5 cm / 22.4 x 12.2 x 3.7 in
Weight: 11.3 kg / 24.9 lbs
Finish: Matte black

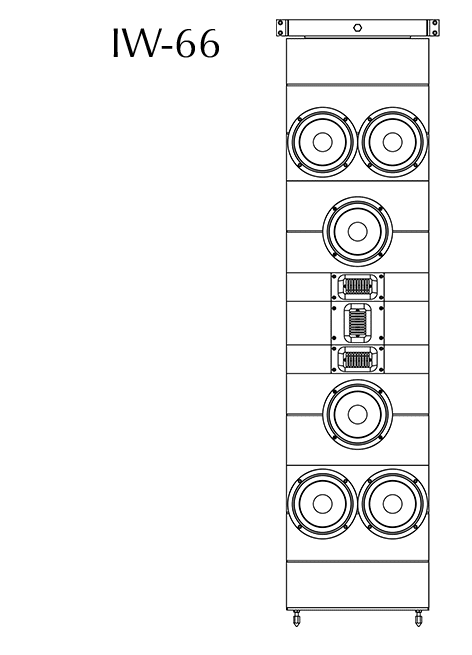

Model IW-66 technical drawing

Specifications (Model IW-66 speaker)

Description: In-wall speaker
Frequency response: 70 – 20k Hz
Max SPL @ 1m: 120 dB
Amplification needed: 2 channels
Dimensions (H x W x D): 140.0 x 35.0 x 20.0 cm / 55.1 x 13.8 x 7.9 in
Weight: 44.0 kg / 97.0 lbs
Finish: Matte black

Download technical drawings
